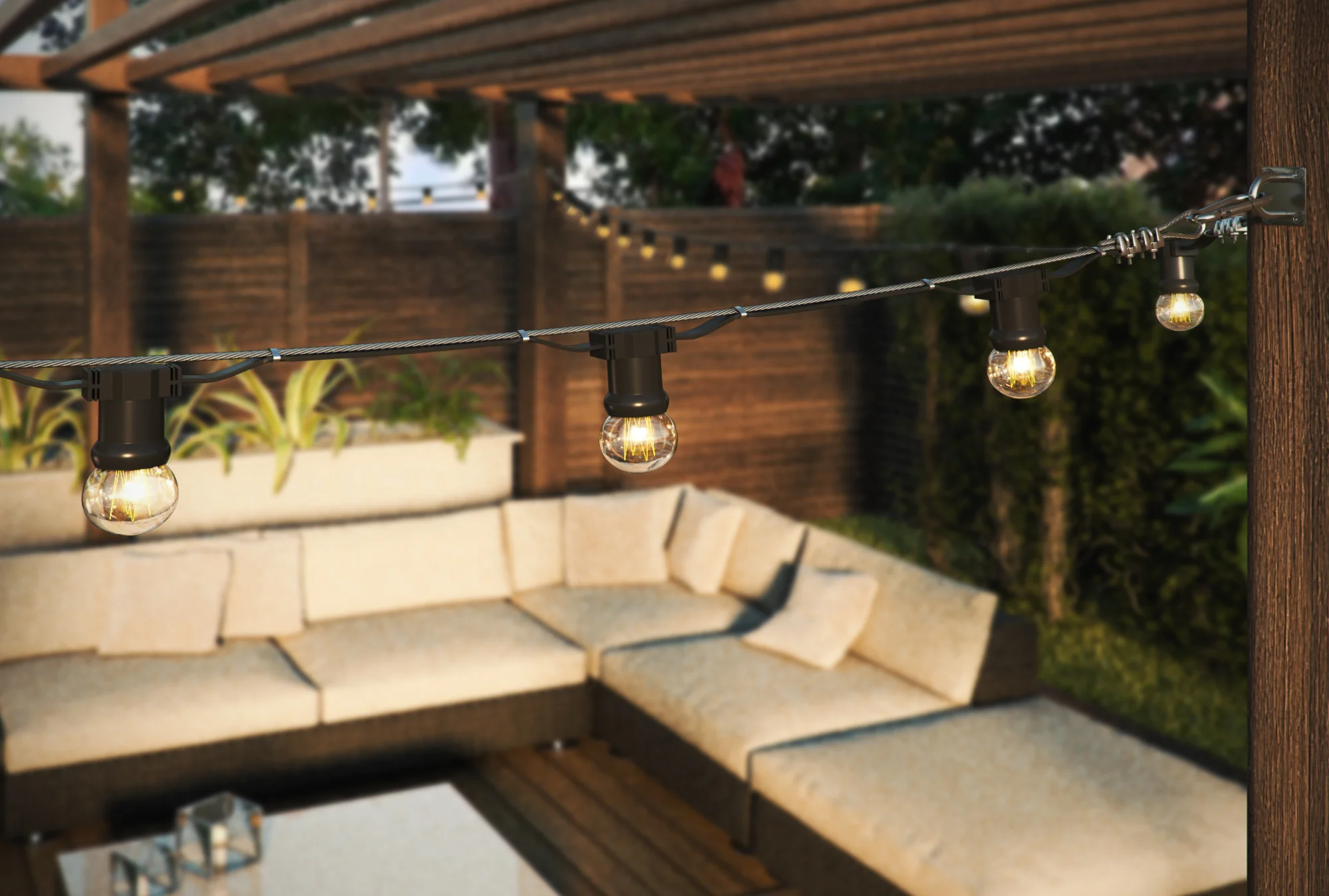

Ultimate Guide to Outdoor Catenary Lighting Hardware & Systems

Outdoor catenary lighting has transformed modern architectural, commercial, and landscape design by allowing luminaires to be suspended over expansive open spaces without the clutter of ground posts or heavy overhead beams. Whether you are illuminating a bustling public piazza, a hospitality courtyard, a brewery beer garden, or a residential patio, achieving a flawless, safe, and long-lasting installation depends entirely on the structural integrity of your rigging components. Utilizing professional-grade outdoor catenary lighting hardware ensures that your system withstands sustained mechanical tension, wind shear, thermal expansion, and environmental exposure. At Miami Stainless, we specialize in delivering marine-grade tensile solutions engineered to provide clean visual aesthetics, structural security, and lifetime reliability across diverse outdoor installations.

Why Marine-Grade Wire Rope Is Essential for Catenary Systems

When engineering suspended catenary spans, the choice of tension cable is the most critical decision governing overall structural safety and long-term performance. Standard galvanized wire rope or lower-grade alloys quickly succumb to surface oxidation, tea staining, and core corrosion when exposed to fluctuating weather, UV radiation, and atmospheric moisture. High-grade AISI 316 marine-grade stainless steel wire rope provides unmatched tensile strength, fatigue resistance, and natural resistance to chloride-induced pitting. Working with a dedicated, specialist stainless steel supplier guarantees that your suspension wire possesses the precise breaking load limits, strand flexibility (such as 1x19 for minimal stretch or 7x19 for pliable rigging), and corrosion-resistant metallurgy required to support luminaire payloads safely across spans exceeding thirty metres.

Selecting the Right Turnbuckles, Rigging Screws, and Tensioners

Maintaining consistent, calibrated tension across your overhead catenary wire prevents unsightly cable sag and protects both the electrical cabling and structural anchor points from dynamic fatigue. Closed-body turnbuckles, jaw-to-jaw rigging screws, and swage tensioners allow installers to fine-tune cable tautness accurately during installation and make routine seasonal adjustments as temperatures fluctuate. Precision-machined 316 stainless steel tensioners prevent thread galling while providing high working load limits capable of resisting severe wind uplift and lateral oscillations. Incorporating lock nuts or safety wire into your tensioning setup ensures that natural system vibrations from passing breezes or heavy storms do not back out the threads over time.

Critical Hardware Components for Safe Catenary Installations

A reliable overhead suspended lighting system relies on an interconnected series of load-rated hardware components designed to distribute static and dynamic forces evenly to your supporting structures. Selecting certified, high-grade fittings ensures that no single weak link compromises the safety of public or private outdoor spaces.

• AISI 316 Stainless Steel Wire Rope: Serves as the primary structural backbone, offering ultra-low stretch characteristics, exceptional yield strength, and maximum resistance against harsh atmospheric elements.
• Heavy-Duty Eye Bolts and Anchor Plates: Securely anchor the catenary line into reinforced concrete, masonry, structural timber posts, or steel uprights, safely transferring lateral tension loads.
• Closed-Body Rigging Screws and Turnbuckles: Provide the mechanical leverage necessary to pull the cable taut and fine-tune operational tension across short, medium, and long spans.
• Thimbles, Ferrules, and Wire Rope Grips: Protect the cable loop from tight-radius friction wear, crimp terminations permanently with hydraulic swaging, or offer adjustable mechanical field clamping.
• Suspension Rings, Clips, and Cable Hangers: Neatly suspend lighting festoons, festoon harnesses, or commercial LED luminaires directly from the messenger wire without damaging the electrical sheath.

Structural Load Considerations: Wind, Sag, and Span Dynamics

Designing an overhead catenary system requires evaluating dynamic environmental forces alongside the static dead weight of the luminaires, festoon strings, and hardware fittings. Even a lightweight lighting run experiences exponential tension forces when pulled completely horizontal, which is why engineering a natural 2% to 5% structural sag into the span is essential for dissipating lateral stress on mounting walls and posts. Furthermore, outdoor installations act as sails during severe weather events; wind-induced drag forces and vortex shedding can multiply mechanical loads significantly. Sizing your wire rope diameter, bracket gauge, and fastener depth according to span length and regional wind classifications prevents structural failure and keeps public walkways safe.

Preventing Galvanic Corrosion in Outdoor Structural Assemblies

Galvanic corrosion occurs when dissimilar metals such as stainless steel hardware connected directly to mild carbon steel or aluminum framing come into contact in the presence of an electrolyte like rainwater or sea spray. This electrochemical reaction rapidly corrodes the less noble metal, leading to joint degradation, cosmetic staining, and compromised anchor stability. Implementing physical isolation barriers such as non-conductive nylon, EPDM, or PTFE washers and neoprene backing bushes between dissimilar materials halts galvanic action completely. Sourcing all associated components from your messenger wire and turnbuckles down to your masonry anchors and locknuts from a unified, specialist supplier ensures consistent metallurgical compatibility and maximum service life.

Key Advantages of Professional-Grade Tensile Architecture

Opting for engineered tensile systems over ad-hoc hanging methods delivers undeniable functional, aesthetic, and financial benefits for commercial property developers, landscape contractors, and homeowners alike.

• Unobstructed Ground Footprints: Eliminates the necessity for disruptive intermediate support poles, maximizing functional floor space for dining tables, pedestrian movement, or event seating.
• Architectural Minimalism: Ultra-slim stainless steel messenger wires virtually disappear against the sky, keeping the visual focus strictly on the warm ambiance of your lighting design.
• Exceptional Weather Longevity: High-tensile 316 marine-grade hardware resists coastal salt spray, industrial pollutants, heavy rainfall, and intense UV degradation without rusting.
• Flexible Luminaire Configurations: Facilitates diverse layout geometries, including linear runs, criss-cross matrix grids, zigzag patterns, or radial canopy sunburst arrays.
• Compliant Structural Safety: Precision-engineered hardware with certified working load limits ensures full compliance with local building codes, public liability guidelines, and safety standards.

Conclusion

Creating a breathtaking, secure overhead lighting display requires blending creative architectural lighting design with rigorous tensile engineering. By utilizing premium outdoor catenary lighting hardware and partnering with a trusted stainless steel supplier, you guarantee that your commercial precinct, beer garden, or outdoor living space remains safe, structurally sound, and visually striking for decades to come.

Explore our complete catalog of certified marine-grade wire ropes, factory-swaged assemblies, and precision tensioning hardware at Miami Stainless today to bring your custom overhead catenary lighting concept to life.

Frequently Asked Questions

1. What wire rope construction is best for outdoor catenary lighting?

For most catenary lighting spans, 1x19 construction 316 stainless steel wire rope is the industry standard because it has minimal stretch and high breaking strength, keeping spans taut over time. For shorter residential runs or applications requiring tight bends and manual terminations, flexible 7x7 or 7x19 wire rope is often preferred for ease of field handling.

2. How much sag should be factored into an overhead catenary wire?

It is recommended to design for a 2% to 5% sag ratio relative to the total span length. Pulling a wire completely flat creates near-infinite tension forces on end fixings and anchor walls, significantly increasing the risk of structural failure during high winds or temperature drops.

3. What is the difference between Grade 304 and Grade 316 stainless steel for catenary hardware?

While Grade 304 stainless steel is suitable for general indoor use, Grade 316 contains 2% to 3% molybdenum, which provides vastly superior resistance to pitting, crevice corrosion, and harsh environmental contaminants like coastal salt air, making it the mandatory choice for outdoor catenary systems.

4. How are lighting cables attached to the structural catenary wire?

Lighting festoons or power cables are typically secured to the stainless steel messenger wire using UV-stabilized cable clips, stainless steel carabiners, wire hanging rings, or specialized catenary hangers. This prevents the electrical cable from bearing any mechanical tension while eliminating sheath abrasion.

5. Can catenary lighting systems be installed between timber posts?

Yes, catenary systems can be anchored into hardwood or treated structural timber posts using heavy-duty stainless steel eye screws, through-bolts with backing plates, or timber-insert terminals. Always verify that the timber posts are structurally sized and braced to withstand the continuous lateral pull of the tensioned wire.
