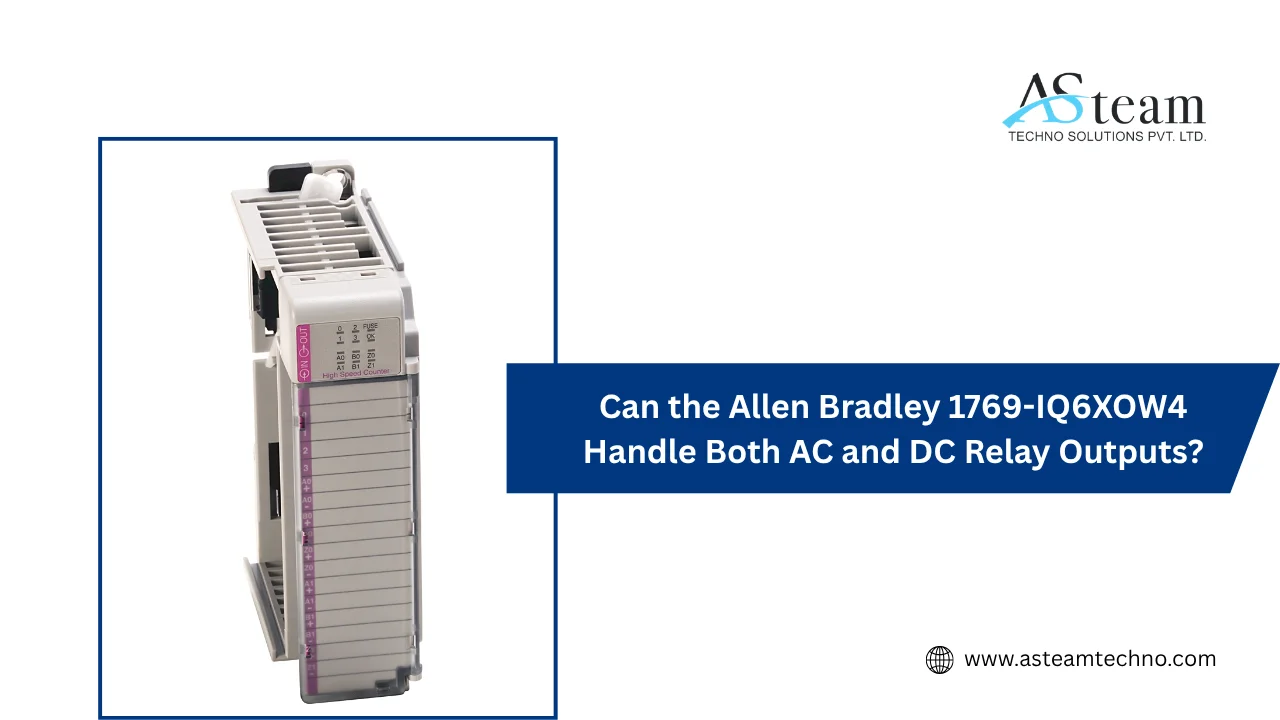

Can the Allen Bradley 1769-IQ6XOW4 Handle Both AC and DC Relay Outputs?

In industrial automation, one control system may need to operate several types of field devices, such as solenoid valves, contactors, pilot lights, motor starters, and other electrical equipment. When these devices use different voltage types, choosing an I/O module that can handle both AC and DC loads can make the overall control panel simpler and more practical.

The Allen Bradley 1769-IQ6XOW4 is one such Compact I/O module. It combines six 24V DC digital inputs with four relay outputs, giving engineers the flexibility to control different types of field devices from the same module.

But can the Allen Bradley 1769-IQ6XOW4 really handle both AC and DC relay outputs?

Yes. Its relay outputs can switch both AC and DC loads, provided that the connected devices stay within the specified voltage and current limits. Understanding these ratings is important before connecting any field device.

Understanding the Allen Bradley 1769-IQ6XOW4

The Allen Bradley 1769-IQ6XOW4 is a combination digital I/O module designed for CompactLogix control systems. It has six 24V DC inputs and four normally open mechanical relay outputs.

Unlike transistor outputs that are designed for a specific type of electrical signal, relay contacts provide greater flexibility because they act as electrically controlled switches. This allows the outputs to be used with AC or DC circuits, as long as the electrical ratings are respected.

Key output characteristics include:

• Four normally open relay outputs
• AC switching capability from 5 to 265V
• DC switching capability from 5 to 125V
• Up to 2.5 A continuous current per output under applicable conditions
• Up to 8 A total continuous current for the module
• Low off-state leakage because the outputs use mechanical relay contacts

This combination makes the module useful for automation applications where different types of loads need to be controlled from one Compact I/O platform.

How Does It Handle AC Loads?

The relay outputs of the Allen Bradley 1769-IQ6XOW4 can be used to switch AC-powered devices within their specified ratings. This can be useful when an automation panel needs to control equipment operating at common AC voltages.

However, it is important not to look at voltage and current ratings separately. A relay may have a particular continuous-current rating, but the actual switching capability can depend on the type of load.

For example, a simple resistive load behaves differently from a motor, transformer, contactor, or solenoid. Inductive equipment can produce a higher current or electrical arc when the relay opens or closes. Repeatedly switching such loads without suitable protection can shorten relay contact life.

For inductive AC loads, an appropriate suppression device can help reduce electrical stress on the contacts. Proper suppression is particularly useful when the output is expected to switch the load frequently.

How Does It Handle DC Loads?

The Allen Bradley 1769-IQ6XOW4 can also switch DC loads within its specified range, up to 125V DC. This makes it suitable for applications where certain field devices operate from DC power while others operate from AC.

However, DC switching deserves particular attention because interrupting a DC circuit can be harder on mechanical relay contacts than switching an equivalent AC load. AC naturally passes through a zero-current point during each cycle, which helps extinguish an electrical arc. DC does not provide this same natural zero crossing.

For this reason, the relay's make, break, and continuous-current ratings should all be checked before connecting a DC device.

For example, the allowable continuous current changes depending on the DC voltage. At 24V DC, the relay contact rating can be higher than at 125V DC. Therefore, simply knowing that the output supports DC voltage is not enough. The actual voltage and load current should always be compared with the manufacturer's specifications.

Can AC and DC Loads Be Used at the Same Time?

Yes. This is one of the useful features of the Allen Bradley 1769-IQ6XOW4.

Because the module has four independent relay outputs, different outputs can be assigned to different field devices based on the requirements of the control system. In an appropriate application, one relay output could control an AC device while another controls a DC device.

The important point is that each output must be evaluated according to the electrical characteristics of its connected load.

Engineers should check:

• Load operating voltage
• Continuous current
• Make and break current
• Load type
• Inrush current
• Inductive characteristics
• Required switching frequency
• Total module current

The combined output current should also remain within the module's specified total rating.

It is also worth remembering that the six inputs and four relay outputs have different electrical characteristics. Although the input side operates with 24V DC signals, this does not restrict the relay outputs to 24V DC. The relay contacts provide the flexibility to switch appropriately rated AC or DC circuits.

What Should You Check Before Installation?

Before installing the Allen Bradley 1769-IQ6XOW4, start by identifying the exact requirements of every connected device.

First, confirm the voltage. Determine whether the field device requires AC or DC and make sure its voltage falls within the relay's supported range.

Next, check the current. Do not rely solely on the maximum headline current rating because the permissible current can vary depending on voltage and load type.

The type of load is equally important. Resistive loads are generally easier for relay contacts to handle, while motors, solenoids, contactors, and transformers can create additional electrical stress.

If the application involves inductive loads, consider suitable surge suppression. This can help reduce arcing and improve relay contact life.

Finally, installation should follow Rockwell Automation's documentation, applicable electrical standards, and the requirements of the specific control panel. Since the module is an open-style component, it should be installed in an appropriate enclosure that provides the necessary protection.

Why Choose the 1769-IQ6XOW4 for Mixed Loads?

The main advantage of the Allen Bradley 1769-IQ6XOW4 is its combination of digital inputs and flexible relay outputs in a compact module.

Instead of requiring separate output modules for different types of loads, engineers can use the relay contacts for appropriately rated AC and DC devices. This can simplify wiring, reduce panel space requirements, and make the I/O arrangement easier to manage.

For CompactLogix applications that contain a mixture of electrical devices, this flexibility can be particularly valuable.

Conclusion

So, can the Allen Bradley 1769-IQ6XOW4 handle both AC and DC relay outputs? Yes. Its four normally open relay outputs are designed to switch both AC and DC circuits within their specified electrical limits.

The module supports AC and DC loads, but that flexibility does not mean every load can be connected without checking its specifications. Voltage, current, load type, switching characteristics, and total module loading all need to be considered.

When these factors are properly evaluated, the Allen Bradley 1769-IQ6XOW4 can be a practical choice for CompactLogix systems that need to control a mixture of AC- and DC-powered equipment.

Frequently Asked Questions

1. Can the Allen Bradley 1769-IQ6XOW4 switch 120V AC?

Yes. The relay outputs can switch AC circuits within their specified voltage and current ratings. The exact rating should be checked against the type of load being controlled.

2. Can the Allen Bradley 1769-IQ6XOW4 switch 24V DC?

Yes. The relay contacts can be used for 24V DC loads, provided the load current and switching characteristics remain within the applicable relay ratings.

3. How many relay outputs does the 1769-IQ6XOW4 provide?

The module has four normally open relay outputs. It also includes six 24V DC digital inputs, providing a total of ten digital I/O points.

4. What is the maximum current supported by the relay outputs?

The commonly specified continuous current is up to 2.5 A per output under applicable conditions, with an overall module limit of 8 A. However, the actual allowable current depends on the voltage and type of load, so the detailed contact ratings should always be checked.

5. Can the 1769-IQ6XOW4 control inductive loads?

Yes, it can be used with appropriately rated inductive loads. However, inductive devices can place additional stress on relay contacts. Using suitable surge suppression and staying within the relay's make, break, and continuous-current ratings can help improve reliability and contact life.
