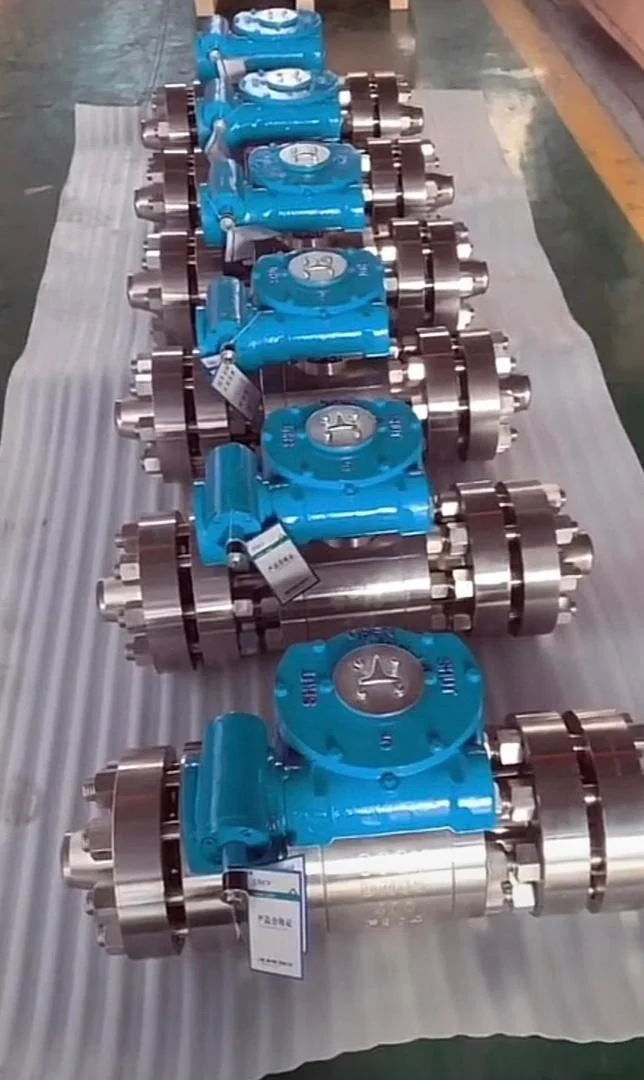

Ball Valve Manufacturer in India

Speciality Valve establishes itself as a prominent  Ball Valve Manufacturer in India, engineering highly reliable, quarter-turn isolation solutions for demanding pipeline systems and chemical process networks. Built around a precision-machined, pivoting spherical disc, these rotary shut-off valves provide near-instantaneous on-off control with minimal operating effort. By establishing a bubble-tight, leak-proof barrier inside the line, they shield sensitive downstream instruments from fluid seepage, maintain system pressure integrity, and ensure smooth, trouble-free plant safety.

What is a Ball Valve?

Ball valves are rugged, quick-opening, flow-control devices consisting of a hollow, perforated, rotating sphere used for either starting or stopping the flow of fluid materials. The flow takes place when the handle or actuator is rotated by 90 degrees as the bore within aligns with the pipe, and there is no restriction in the flow; otherwise, the entire wall of the sphere acts as an obstruction in the fluid flow.

Construction and Working Principle

The structure of an industrial ball valve consists of a tough shell that holds a precisely machined, polished spherical ball, which has a hole drilled right through the center. When the operator activates the ball valve using either an external lever or automatic actuator by 90 degrees, the transmission stem causes the ball to rotate within the housing; in the open state, the ball’s hole aligns perfectly with the path of the pipeline, allowing fluids to flow straight through without any pressure loss. In order to stop the flow entirely, the quarter-turn mechanism causes the solid face of the ball to contact the polymer-sealing seats around the ball, creating a tight seal using the backpressure of the pipeline itself.

Types of Ball Valves

• Floating Ball Valve:Contains a loose fitting of a ball between two seats, where the fluid pressure acts on the sphere to press it against the downstream seat to provide a better seal for low-to-medium pressure pipes.
• Trunnion-Mounted Ball Valve:  Secures the sphere firmly on the upper and lower shafts (trunnions) to ensure perfect positioning of the sphere while the seats move due to the pressure; best for large diameter high pressure pipe systems.
• 1-Piece, 2-Piece, and 3-Piece Ball Valves:Provides the choice of structures ranging from cost-effective one-piece bodies to highly serviceable three-piece bodies which allow internal seals to be replaced without removing the valve from the pipeline.
• Double block  and bleed ball valve:-A double block and bleed ball valve uses two independent seals and a central vent to safely isolate fluid flow and drain trapped pressure, preventing downstream leakage during maintenance.

Technical Specifications:

• Sizing Matrix: Manufactured across an extensive dimensional span from 1/2″ up to 48″ (DN15 – DN1200).
• Pressure Capabilities: Rated to easily conquer severe process loads from ANSI Class 150 to Class 2500 (or PN10 to PN420).
• Body Metallurgy: Cast Steel (WCB, LCB, LCC), Forged Steel (LF2), Stainless Steel (CF8, CF8M, CF3, CF3M), and heavy corrosion-resistant materials like Duplex (F51, F55) or Alloy 20.
• Trim and Seat Choices: PTFE, TFM, Nylon, Devlon, or specialized Metal-to-Metal hard facings (Stellite/Tungsten Carbide) for high-temperature or abrasive slurry environments.
• End Styles: Standard connections include Flanged (RF/RTJ), Socket Weld (SW), Butt Weld (BW), and Threaded (NPT/BSP).
• Operation Control: Lever handles, manual gear units, high-torque Electric Actuators, or fast-acting Pneumatic Actuators.

Industries Served

Ball valves find extensive application in industries that demand reliable shut-off and flow isolation, including:

• Oil and Gas Transmission: Managing high-velocity crude extraction lines and cross-country gas networks.
• Refineries and Petrochemicals: Controlling aggressive chemicals, volatile solvents, and corrosive fuel refining lines.
• Power Plants and Utilities: Regulating high-pressure boiler feed water, auxiliary cooling lines, and low-pressure utility loops.
• Water Distribution and Management: Mainline isolation in municipal networks, massive treatment centers, and pumping stations.
• Marine and Offshore Rigs: Surviving harsh, salt-heavy environments on open-deck sea vessels and subsea extraction blocks.

Cryogenic valves are essential for the safe and efficient management of liquefied gases in low-temperature environments. Through advanced engineering, extended bonnet design, high-quality cryogenic-grade materials, and sealing technology, Speciality Valve, a prominent Ball Valve Manufacturer in India offers valves that guarantee reliable performance, extended service life, and adherence to international standards. Their extensive selection of cryogenic valves is tailored to meet the stringent demands of contemporary industrial processes that function under extreme temperature conditions.

To know more, visit https://www.specialityvalve.com/product-category/ball-valve/
