One Panel, Two Champions: How MCCB Electrical Devices and Electrical MCBs Work Together to Protect Every Circuit You Own

Electrical circuit protection is the invisible foundation of every safe installation. The quality and correct specification of protective devices, whether MCCBs for medium to high current applications or electrical MCBs for individual circuit protection, determines whether a fault in an electrical system results in a controlled, safe shutdown or in a dangerous and potentially catastrophic failure. Lauritz Knudsen Smartshop provides the most comprehensive range of MCCB electrical products and electrical MCBs available from a single trusted manufacturer in India.

MCCB Electrical Products From Lauritz Knudsen SmartShop

MCCB electrical products from Lauritz Knudsen SmartShop cover the complete spectrum of medium-current protection requirements from approximately 16 amps to 1600 amps and above.

DU Series MCCB Electrical Range

The DU Series is the flagship MCCB electrical range from Lauritz Knudsen SmartShop. It features a new generation design with contemporary aesthetics, ergonomic construction, and compliance with the latest IS/IEC 60947-2, IEC 60947-2, and EN 60947-2 standards. The DU Series is specifically designed for tropical conditions, providing reliable performance in India's high ambient temperatures and humid environments that can compromise inferior MCCB products.

dsine Series MCCB

The dsine series represents the next evolution in Lauritz Knudsen SmartShop's MCCB electrical range, with a broad spectrum of protection mechanisms and state-of-the-art design. The dsine product is positioned as a leader in new-generation MCCB technology for demanding modern distribution systems.

MCCB Electrical Accessories

The MCCB electrical range from Lauritz Knudsen Smartshop includes an extensive accessories catalog covering auxiliary contacts, shunt trips, under-voltage releases, motor operators, and earth fault protection modules. These accessories transform the basic MCCB into a sophisticated protection and control device capable of integration into advanced power management systems.

Electrical MCBs From Lauritz Knudsen

The electrical MCB range from Lauritz Knudsen SmartShop covers every standard rating, curve, pole configuration, and breaking capacity required for domestic, commercial, and light industrial circuit protection applications.

Domestic Electrical MCBs

For residential distribution boards, Lauritz Knudsen SmartShop electrical MCBs provide reliable overcurrent and short circuit protection for lighting, power socket, and fixed appliance circuits. Available in B-curve and C-curve variants across current ratings from 6 amps to 63 amps, these products meet the full range of protection requirements in standard Indian residential installations.

Commercial and Industrial Electrical MCBs

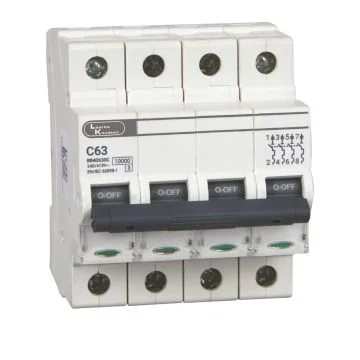

For commercial and industrial distribution boards, the electrical MCB range extends to include K-curve variants for specialized applications, higher breaking capacities of up to 10 kA and above for installations with high prospective fault currents, and four-pole configurations for three-phase installations requiring neutral pole protection.

RCBO Electrical Protection

The RCBO, which combines the functions of an electrical MCB and a Residual Current Device in a single module, provides both overcurrent and earth fault protection in a single gang box space. RCBOs are increasingly specified in preference to separate RCDs and MCBs because they provide individual circuit earth fault protection without affecting other circuits when a fault occurs.

Selecting the Right MCCB Electrical Product or MCB

The correct selection of an MCCB electrical product or electrical MCB requires careful evaluation of the key parameters that define the protection performance required.

• Rated current must match or exceed the continuous current of the protected circuit, with consideration for load growth and future expansion requirements.
• Breaking capacity must meet or exceed the prospective short circuit current at the point of installation, determined by the upstream transformer and supply impedance.
• Trip curve must be appropriate for the load type, with B-curve for resistive domestic loads, C-curve for commercial and light industrial loads, and D or K curve for high-inrush loads.
• Number of poles must match the supply configuration, whether single-phase two-pole or three-phase three-pole or four-pole.

Coordination Between MCCB Electrical and MCB Devices

In a well-designed distribution system, MCCBs and MCBs must be coordinated to ensure that faults are cleared by the device nearest to the fault without unnecessarily tripping upstream devices and interrupting supply to circuits unaffected by the fault.

• Total discrimination between a downstream MCB and an upstream MCCB electrical device is achieved when the MCB's maximum operating current is below the MCCB's minimum operating threshold for short circuit protection.
• Partial discrimination is acceptable in many systems where the economic cost of achieving full discrimination is not justified by the operational consequences of the upstream device occasionally tripping on downstream faults.

IEC 61439 Compliant Panels With MCCB and MCB Devices

Lauritz Knudsen SmartShop provides complete IEC 61439 compliant panel solutions that incorporate its MCCB electrical and MCB products within factory-assembled and tested distribution panel assemblies meeting the requirements of this international standard for low-voltage switchgear and controlgear assemblies.

Benefits of IEC 61439 Compliance

IEC 61439 compliant panels have been verified through design verification tests and routine verification checks to confirm that they meet the standards for temperature rise, short circuit withstand, dielectric properties, and earthing continuity. This verification gives users confidence that the complete assembly will perform safely under all specified operating conditions.

Customized Panel Solutions

Lauritz Knudsen SmartShop can provide customized panel solutions incorporating its MCCB electrical and MCB products to meet specific project requirements, with engineering design support to ensure optimal protection coordination and compliance with applicable standards throughout the distribution system.

MCCB for Power Factor Correction Panels

Power factor correction panels using capacitor banks require MCCBs that can handle the high inrush currents generated when capacitor bank stages are switched in. Lauritz Knudsen SmartShop provides APFC controllers and compatible MCCB electrical products for power factor correction applications across industrial and commercial installations.

MCCB in Variable Frequency Drive Applications

Variable frequency drives require MCCBs on their supply side that can handle the harmonic currents generated by the drive input rectifier. Selecting MCCBs with appropriate de-rating for harmonic-rich supply currents ensures reliable protection without nuisance tripping in VFD applications.

Conclusion

MCCB electrical products and electrical MCBs from Lauritz Knudsen Smartshop provide the circuit protection foundation that every safe electrical installation requires. With the DU Series and dsine MCCBs and the complete MCB range covering every specification and application, Lauritz Knudsen SmartShop offers the most comprehensive and trusted electrical protection range available in India.
